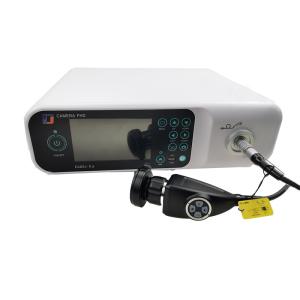

Full HD Medical Endoscope Camera System For Arthoscope DJSXJ-IId

  • 1
  • 2

Brand Name : Dajing

Model Number : DJSXJ-IId

Certification : CE

Place of Origin : China

MOQ : 1SET

Payment Terms : T/T

Delivery Time : 30days

Packaging Details : Carton

Image Sensor : 1/1.9'' Sony IMX185 CMOS Sensor

Effective Pixels : 1920(H) x 1080(V)

Resolution : 1000TVL

White Balance : Manual

Exposure : Auto / Manual

Image Gamma : 0.45, 0.55, 0.65, 0.75

Handle Button : Picture, Video, White balance

Weight : 4kgs

Contact Now

Full HD Endoscope Camera System for Arthroscope DJSXJ-IId

Arthroscopy is often done as day surgery. Depending on the joint involved and your health, you might have some form of local anaesthetic, or perhaps a general anaesthetic.

The surgeon will make a tiny cut near the joint and insert the arthroscope. Arthroscope is connected with DAJING Full HD Endoscope Camera System.The images taken from inside your joint will be shown on a video monitor. The surgeon might be able to see what is causing your problem.

If surgery is needed, the surgeon may make a few more narrow cuts and insert surgical instruments to fix particular types of joint problem.

Technical Data
Image Sensor 1/1.9'' Sony IMX185 CMOS Sensor
Unit Cell Size 3.75 umx3.75 um
Effective Pixels 1920(H) x 1080(V)
Resolution 1000TVL
S/N >54dB
AGC 0-20dB Adjustable
Lens Mount C-Mount
Scanning Mode Progressive
Illumination Ref 3000k-8000k
Min.Sensitivity 20LxF1.4
Waterproof Camera Head IPX7 waterproof
Transmission SMPTE 424M 3G-SDI, 75Ω
Display screen 5.0 inch, Resolution 800 x 480
Recording function Support U disk or mobile hard disk for 1080P recording
Video storage format MP4 format for H.264/H.265 ENCODING STORAGE
White Balance Manual
Language Chinese,English
Handle Button Picture, Video, White balance
Working Temperature 0℃ ~+40℃
Power Supply AC100-240V 50/60 HZ
Weight 4kgs

Full HD Medical Endoscope Camera System For Arthoscope DJSXJ-IId
